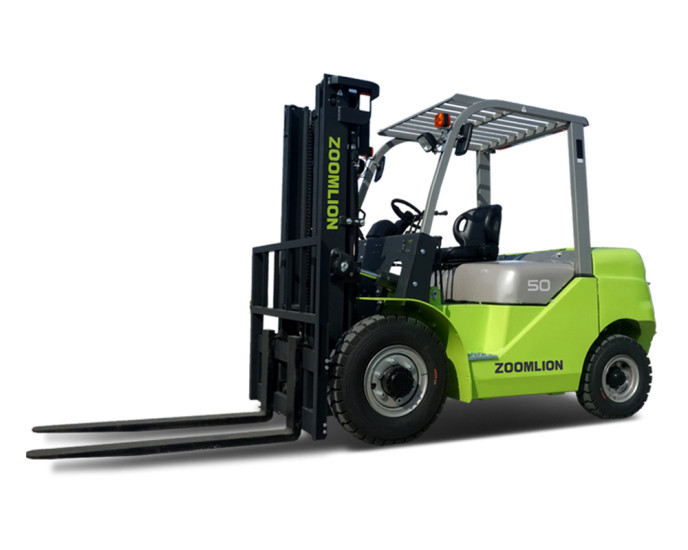

LPG Forklift FD50/60/70
| Specifications | unit | FD50 | FD60 | FD70 | ||
|---|---|---|---|---|---|---|
| Characteristics | Power | diesel | diesel | diesel | ||
| Rated Capacity | kg | 5000 | 6000 | 7000 | ||
| Center of load | mm | 600 | 600 | 600 | ||
| Lifting height | mm | 3000 | 3000 | 3000 | ||
| Free lifting height | mm | 203 | 208 | 218 | ||
| Forks L×W×H | mm | 1220×150×55 | 1220×150×60 | 1220×150×70 | ||
| Tilt Forward/Backward | 。 | 6/12 | 6/12 | 6/12 | ||
| Min.turning radius | mm | 3250 | 3370 | 3370 | ||
| Min.ground clearance(Mast) | mm | 200 | 200 | 200 | ||
| Overhead guard height | mm | 2460 | 2460 | 2460 | ||
| Height from seat to overhead guard | mm | 1050 | 1050 | 1050 | ||
| Front overhang | mm | 610 | 615 | 625 | ||
| Perf | Max.traveling speed(loaded) | km/h | 26 | 26 | 26 | |
| Max.lifting speed（loaded/empty） | mm/s | 370/450 | 370/450 | 370/450 | ||
| Drawbar pull/Gradeability | kN/% | 51.4/20 | 51.4/20 | 51.4/20 | ||
| Dimensions | Overall length （without fork） | mm | 3431 | 3431 | 3466 | |
| Overall width | mm | 2235 | 2235 | 2235 | ||
| Mast lowered height | mm | 2500 | 2500 | 2500 | ||
| Mast extended height | mm | 4417 | 4417 | 4417 | ||
| Chassis | Tire | Front | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | |
| Rear | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | |||
| Wheelbase | mm | 2250 | 2250 | 2250 | ||
| Tread width | Front/Rear | mm | 1470/1700 | 1470/1700 | 1470/1700 | |
| Curb weight | None-load | kg | 7980 | 8640 | 9340 | |
| Powertrain | Battery | Voltage/Capacity | V/Ah | （12/90)x2 | （12/90)x2 | （12/90)x2 |
| Engine | Model | CY6102BG6 | CY6102BG6 | CY6102BG6 | ||
| Rated power | kw/r.p.m | 81/2500 | 81/2500 | 81/2500 | ||
| Rated torque | Nm/r.p.m | 353/1700 | 353/1700 | 353/1700 | ||
| Cylinder amount | 6 | 6 | 6 | |||
| Bore×Stroke | mm | 102×118 | 102×118 | 102×118 | ||
| Displacement | 5.785 | 5.785 | 5.785 | |||
| Fuel tank | L | 140 | 140 | 140 | ||
| Transmission | 1/1 automatic transmission | |||||
| Working pressure | MPa | 20 | 20 | 20 | ||
