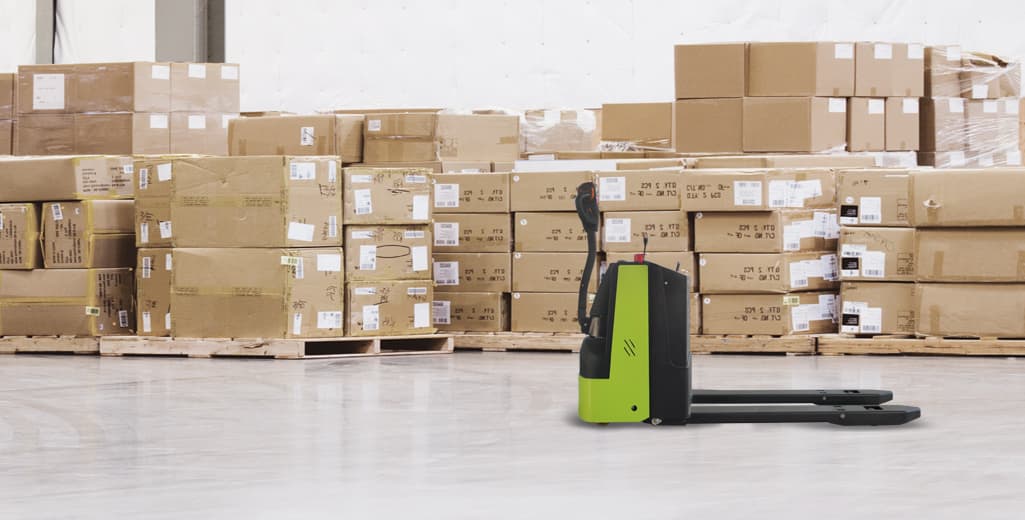

Electric Pallet Truck TB15-M1
| Characteristics | 1.1 | model | TB15-MA2 | |
| 1.2 | drive | electric | ||
| 1.3 | operator type | walkie | ||
| 1.4 | load capacity | Q(kg) | 1500 | |
| 1.5 | load centre | c(mm) | 600 | |
| 1.6 | front overhang | x(mm) | 889 | |
| 1.7 | wheel base | Y(mm) | 1261/1205 | |
| weight | 2.1 | capacity(with battery) | kg | 195 |
| 2.2 | axle loading ，laden(front/rear) | kg | 505/990 | |
| 2.3 | axle loading ，unladen(front/rear) | kg | 155/40 | |
| wheels chassis | 3.1 | tyres type | polyurethane | |
| 3.2 | wheel size (front) | Ф210×70 | ||
| 3.3 | wheel size (rear) | 2× Ф78×60（Ф78×88） | ||
| 3.4 | additional wheels | / | ||
| 3.5 | wheels ，number front/rear （x = drven wheels） | 1X/4（1X /2） | ||
| 3.6 | track width (front) | b10(mm) | / | |
| 3.7 | track width (rear) | b11(mm) | 410（535） | |
| / | 4.1 | lifting height | h3(mm) | 115 |
| 4.2 | height of tiller in driving position min/max | h14(mm) | 790/1225 | |
| 4.3 | height ,fork lowered | h13(mm) | 80 | |
| 4.4 | length | l1(mm) | 1638 | |
| 4.5 | length to face of forks | l2(mm) | 488 | |
| 4.6 | width | b1(mm) | 568（685） | |
| 4.7 | fork dimentions | s/e/l(mm) | 50/150/1150 | |
| 4.8 | width across forks | b5(mm) | 560（685） | |
| 4.9 | ground clearance centre of wheelbase | m2(mm) | 30 | |
| 4.10 | aisel width，pallet 1000x1200(1200crossways) | Ast(mm) | 1739 | |
| 4.11 | aisel width，pallet 800x1200(1200lengthways) | Ast(mm) | 1939 | |
| 4.12 | turning radius | Wa(mm) | 1485 | |
| Dimensions | 5.1 | travel speed ，laden/unladen | Km/h | 4/4.5 |
| 5.2 | lifting speed laden/unladen | m/s | 0.029/0.038 | |
| 5.3 | lowering speed ， laden/unladen | m/s | 0.046/0.033 | |
| 5.8 | max.grade ability， laden/unladen | % | 2/6 | |
| 5.1 | service brake | electromagnetic | ||
| motor | 6.1 | drive motor power | kW | 0.65 |
| 6.2 | lift motor power | kW | 0.84 | |
| 6.4 | battery voltage/rated capacity | V/Ah | 24/65 | |
| 6.5 | battery weight | Kg | 22.5×2 | |
| others | 8.1 | type of dirve control | AC | |
| 8.2 | soundlevel at the driver's sear according to DIN12053 | dB(A) | 74 |
