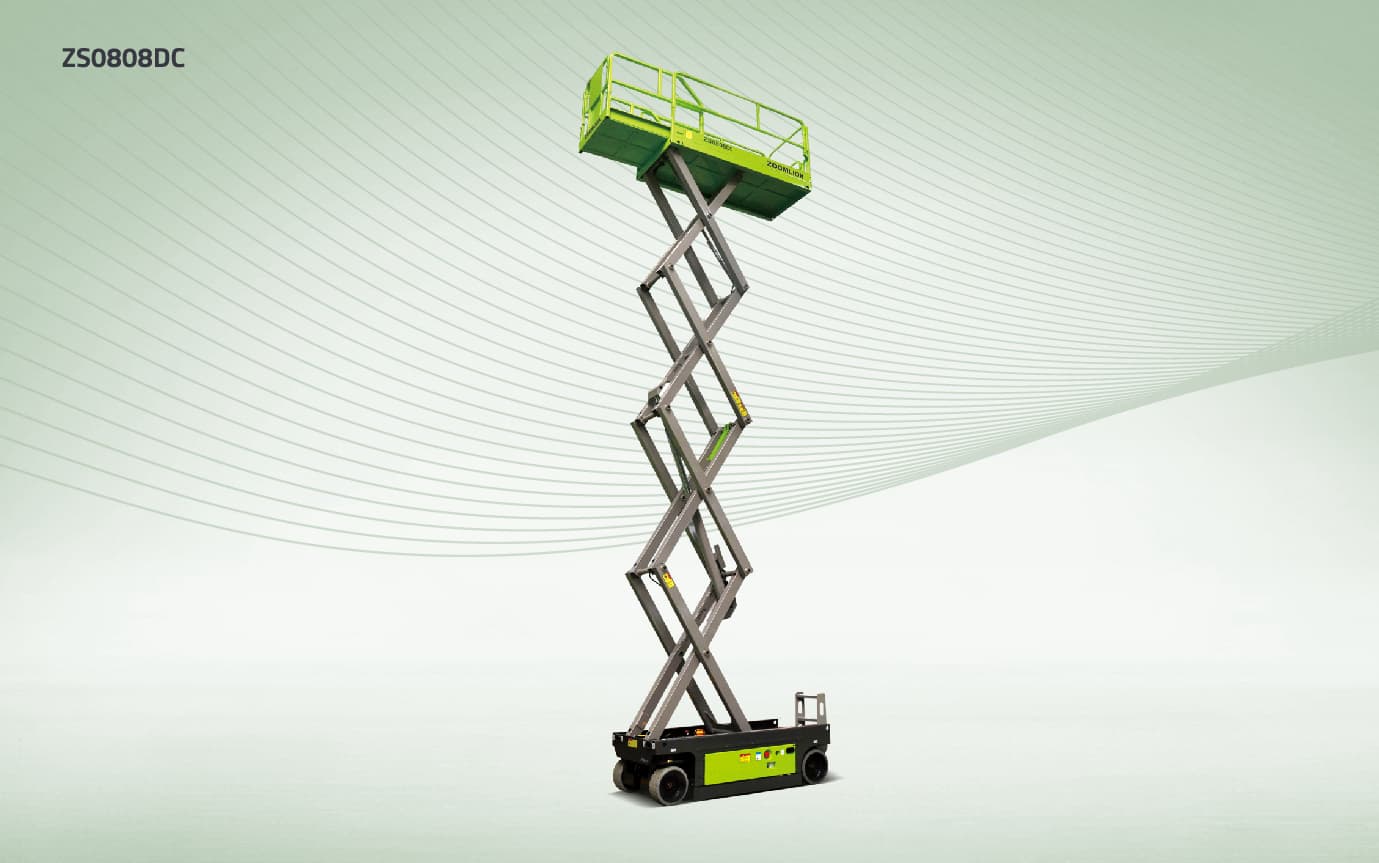

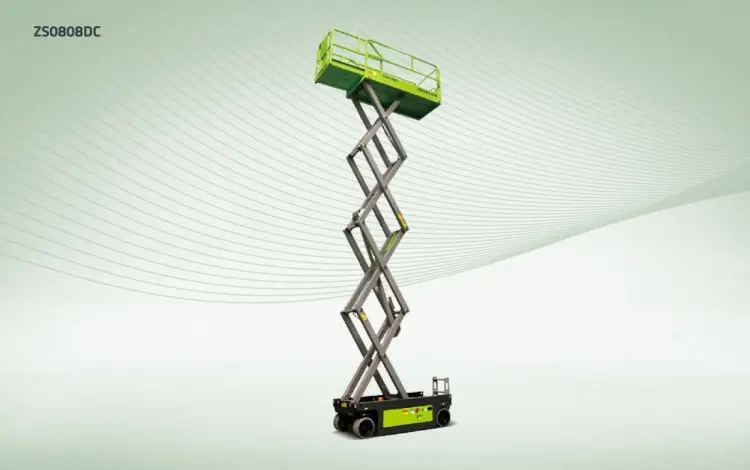

ZS0808DC
İndir| Model | ZS1414DC/ZS4555DC | ZS1212DC/ZS4045DC | ZS1012DC/ZS3246DC | ZS0812DC/ZS2646DC | ZS0808DC/ZS2632DC | ZS0607DC/ZS1930DC | ||||||
| Metric | Imperial | Metric | Imperial | Metric | Imperial | Metric | Imperial | Metric | Imperial | Metric | Imperial | |
| Size | ||||||||||||
| Work Height | 15.7m | 51ft 6in | 13.80m | 45ft 3in | 11.80m | 38ft 9in | 10.00m | 32ft 10in | 10.00m | 32ft 10in | 7.8m | 25ft 7in |
| A - Platform Height-Elevated | 13.7m | 44ft 11in | 11.80m | 38ft 9in | 9.80m | 32ft 2in | 8.00m | 26ft 3in | 8.00m | 26ft 3in | 5.8m | 19ft |
| B - Platform Height-Stowed | 1.54m | 5ft 1in | 1.52m | 4ft 12in | 1.39m | 4ft 7in | 1.26m | 4ft 2in | 1.26m | 4ft 2in | 1.05m | 3ft 5in |
| C - Platform Length | 2.67m | 8ft 9in | 2.30m | 7ft 7in | 2.30m | 7ft 7in | 2.30m | 7ft 7in | 2.30m | 7ft 7in | 1.65m | 5ft 5in |
| D - Platform Width | 1.12m | 3ft 8in | 1.12m | 3ft 8in | 1.12m | 3ft 8in | 1.12m | 3ft 8in | 0.81m | 2ft 8in | 0.74m | 2ft 5in |
| Platform Extension | 0.91m | 3ft | 0.91m | 3ft | 0.91m | 3ft | 0.91m | 3ft | 0.91m | 3ft | 0.91m | 3ft |
| E Overall Height (Rails Up) | 2.68m | 8ft 10in | 2.66m | 8ft 9in | 2.53m | 8ft 4in | 2.4m | 7ft 11in | 2.4m | 7ft 11in | 2.20m | 7ft 3in |
| Overall Height (Rails Down) | 2.15m | 7ft 1in | 2.13m | 6ft 12in | 2m | 6ft 7in | 1.87m | 6ft 2in | 1.9m | 6ft 3in | 1.79m | 5ft 10in |
| F Overall Length | 2.87m | 9ft 5in | 2.49m | 8ft 2in | 2.49m | 8ft 2in | 2.49m | 8ft 2in | 2.49m | 8ft 2in | 1.85m | 6ft 1in |
| G Overall Width | 1.4m | 4ft 7in | 1.15m | 3ft 9in | 1.15m | 3ft 9in | 1.15m | 3ft 9in | 0.81m | 2ft 8in | 0.76m | 2ft 6in |
| H Wheelbase | 2.22m | 7ft 3in | 1.85m | 6ft 1in | 1.85m | 6ft 1in | 1.85m | 6ft 1in | 1.85m | 6ft 1in | 1.37m | 4ft 6in |
| I Ground Clearance (Stowed) | 0.11m | 4.5in | 0.11m | 4.5in | 0.11m | 4.5in | 0.11m | 4.5in | 0.11m | 4.5in | 0.06m | 2.4in |
| J Ground Clearance (Raised) | 0.02m | 0.75in | 0.02m | 0.75in | 0.02m | 0.75in | 0.02m | 0.75in | 0.02m | 0.75in | 0.016m | 0.65in |
| Performance | ||||||||||||
| Platform Capacity | 260kg | 570lb | 350kg | 770lb | 350kg | 770lb | 450kg | 990lb | 230kg | 510lb | 230kg | 510lb |
| Capacity on Deck Extension | 113kg | 250lb | 113kg | 250lb | 113kg | 250lb | 113kg | 250lb | 113kg | 250lb | 113kg | 250lb |
| Max. Number of Workers | 2 | 3/2（NA） | Indoor: 2 Outdoor: 1 |
Indoor: 2 Outdoor: 1 |
2 | 2 | ||||||
| Drive Speed (Stowed) | 4km/h | 2.5mph | 4km/h | 2.5mph | 4km/h | 2.5mph | 4km/h | 2.5mph | 4km/h | 2.5mph | 4km/h | 2.5mph |
| Drive Speed (Raised) | 0.8km/h | 0.5mph | 0.8km/h | 0.5mph | 0.8km/h | 0.5mph | 0.8km/h | 0.5mph | 0.8km/h | 0.5mph | 0.8km/h | 0.5mph |
| Turning Radius (Inside) | 0.1m | 4in | 0.1m | 4in | 0.1m | 4in | 0.1m | 4in | 0.1m | 4in | 0.1m | 4in |
| Turning Radius (Outside) | 2.6m | 8ft 6in | 2.2m | 7ft 3in | 2.2m | 7ft3in | 2.2m | 7ft3in | 2.1m | 6ft 11in | 1.6m | 5ft 3in |
| Lifting Motor | 24V/4.5KW | 24V/4.5KW | 24V/4.5KW | 24V/4.5KW | 24V/3.3KW | 24V/3.3KW | ||||||
| Drive Motor | 24V/2×0.75KW | 24V/2×0.75KW | 24V/2×0.75KW | 24V/2×0.75KW | 24V/2×0.75KW | 24V/0.65KW | ||||||
| Up/Down Time | 88/60s | 62s/42s | 60s/35s | 31s/40s | 31s/40s | 20s/24s | ||||||
| Gradeability | 25%(14°) | 25%(14°) | 25%(14°) | 25%(14°) | 25%(14°) | 25%(14°) | ||||||
| Max. Working Slope (Lateral/Vertical) | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° | ||||||
| Control | Proportional Control | Proportional Control | Proportional Control | Proportional Control | Proportional Control | Proportional Control | ||||||
| Drive | Front Wheels | Front Wheels | Front Wheels | Front Wheels | Front Wheels | Front Wheels | ||||||
| Brake | Front Wheels | Front Wheels | Front Wheels | Front Wheels | Front Wheels | Front Wheels | ||||||
| Tire | ∅381mmX127mm | ф15in×5in | ф381mm×127mm | ф15in×5in | ф381mm×127mm | ф15in×5in | ф381mm×127mm | ф15in×5in | ф381mm×127mm | ф15in×5in | ф323mm×100mm | ф13in×4in |
| Power | ||||||||||||
| Battery | 4×6V/220Ah 4×12V/300Ah（US） |
4×6V/220Ah 4×12V/300Ah（US） |
4×6V/220Ah 4×6V/240Ah |
4×6V/220Ah 4×6V/240Ah |
4×6V/170Ah 4×6V/225Ah |
4×6V/170Ah 4×6V/210Ah |
||||||
| Charger | 24V/30A | 24V/30A | 24V/30A | 24V/30A | 24V/30A | 24V/30A | ||||||
| Weight | ||||||||||||
| Gross | 3430kg | 7560lb | 3210kg | 7075lb | 2930kg | 6460lb | 2550kg | 5620lb | 2090kg | 4610lb | 1455kg | 3210lb |
