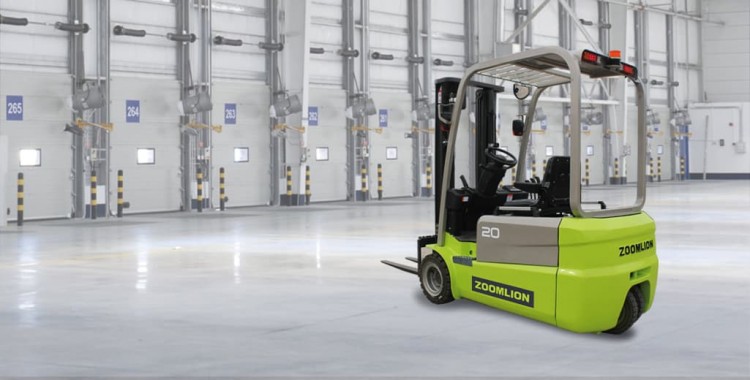

Electric Forklift FB10/15/20/25/30/35



Specifications Unit FB10 FB15 FB20 FB25 FB30 FB35
Characteristics Power   battery battery battery battery battery battery
Capacity kg 1000 1500 2000 2500 3000 3500
Center of load mm 500 500 500 500 500 500
Lifting height mm 3000 3000 3000 3000 3000 3000
Free lifting height mm 135 135 145 145 145 150
Forks L×W×H mm 920×100×35 920×100×35 1070×122×40 1070×122×40 1070×125×45 1070x125x50
Mast tilt angle Forward/Backward 。 6/12 6/12 6/12 6/12 6/12 6/12
Min.turning radius mm 1850 1850 2090 2090 2245 2385
Min. right angle stacking width mm 3460 3460 3760 3760 3930 4065
Min. right angle Aisle width mm 1840 1840 2040 2040 2120 2290
Min.ground clearance mm 100 100 110 110 120 120
Overhead guard height mm 2100 2100 2150 2150 2170 2300
Height from seat to overhead guard mm 1005 1005 1005 1005 1005 1100
Front overhang mm 405 405 470 470 475 485
Perf Max.traveling speed(loaded) km/h 12 12 13 13 13.5 13
Max.lifting speed（loaded） mm/s 280 300 270 300 280 300 270 300 280 320 280
Gradeability % 15 15 15 15 15 12
Dimensions Overall length （without fork） mm 1990 1990 2310 2310 2511 2630
Overall width mm 1070 1070 1150 1150 1225 1225
Mast extended height(with bracket) mm 3860 3860 4030 4030 4264 4264
Mast lowered height  mm 1955 1955 1990 1990 2055 2095
Chassis Tire Front   6.50-10-10PR 6.50-10-10PR 7.00-12-12PR 7.00-12-12PR 28×9-15-12PR 28x9-15
Front   6.50-10-10PR 6.50-10-10PR 7.00-12-12PR 7.00-12-12PR 28×9-15-12PR 28x9-15
Rear   5.00-8-10PR 5.00-8-10PR 18×7-8-14PR 18×7-8-14PR 18×7-8-14PR 18x7-8
Wheelbase mm 1250 1250 1450 1450 1600 1720
Tread width Front/Rear mm 890/920 890/920 960/950 960/950 1000/980 1000/980
Curb weight None-load kg 2800 2990 3950 4050 4810 5300
Powertrain Battery Voltage/Capacity V/Ah 48/450 48/450 48/630 48/630 80/500 80/560
Motor Traveling KW 8 8 11 11 12 12
Lifting KW 7.5 10 7.5 10 10 14 10 14 12 14 14
Controller CURTIS CURTIS CURTIS CURTIS CURTIS CURTIS
Control type 50%AC 100%AC 50%AC 100%AC 50%AC 100%AC 50%AC 100%AC 50%AC 100%AC 100%AC
Working pressure Mpa 14.5 14.5 17.5 17.5 17.5 17.5
