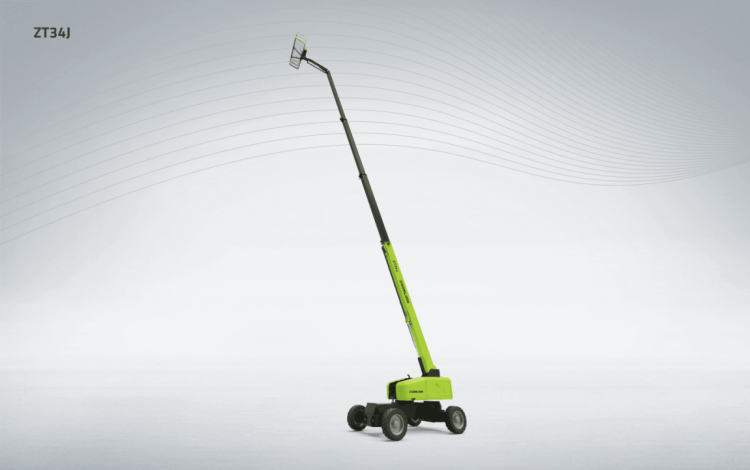

ZT34J
İndir| Main Specs of Telescopic Boom Lifts | |||
| Comply with CE/ANSI/GB Standard | |||
| Model | ZT34J | ||
| Size | |||
| Work Height | 36m | ||
| Platform Height | 34m | ||
| Horizontal Outreach | 24.2m | ||
| A - Stowed Length | 13.50m | ||
| B - Stowed Width | 2.49m | ||
| C - Stowed Height | 3m | ||
| D - Platform Length | 2.44m | ||
| E - Platform Width | 0.91m | ||
| F - Wheelbase | 3.80m | ||
| G - Ground Clearance | 0.41m | ||
| Performance | |||
| Platform Capacity (Unrestricted/Restricted) | 300/454kg | ||
| Drive Speed (Working) | 5.5km/h | ||
| Gradeability | 45% (24°） | ||
| Turning Radius (Inside) | 2.8/4.4m | ||
| Turning Radius (Outside) | 6.2/6.6m | ||
| Turntable Swing | 360°continuous | ||
| Platform Rotation | ±90° | ||
| Tail Swing | 1.88m | ||
| Jib (Range of Articulation) | 130°（﹣55°~75°） | ||
| Max. Working Slope | 3° | ||
| Max. Wind Speed | 12.5m/s | ||
| Power | |||
| Engine |
Cummins QSF2.8 Kubota V2607 |
||
| Fuel Tank Capacity | 200L | ||
| Control Voltage | 12V DC | ||
| Hydraulic Tank Capacity | 250L | ||
| Drive Mode | 4WD | ||
| Steering Mode | Front-wheel/Rear-wheel/Crab | ||
| Tire | |||
| Type | IN445/50D710 Foam-filled Tires |
||
| Weight | |||
| Gross | 19200kg | ||
| Highlights | |||
| Better work envelop performance, 10% larger than competitor | |||
| Zoomlion AWM Remote Monitoring and Rental Management System | |||
| Smart telematic control interface with self-diagnostic monitoring capability | |||
| Platform dual capacity design, up to 300/454 kg | |||
| Smooth & stable boom extension technique controls the minimum stable extending speed at 0.015 m/s | |||
| Features | |||
| Standard Features | |||
| All motion alarm | Horn | ||
| Self-closing entry gate | Proportional control | ||
| GPS positioning and tracking system | Flashing amber beacon | ||
| Auto-leveling system | Remote monitoring and rental management system | ||
| Over tilt protection system | Emergency stop button | ||
| On-board diagnostic system | Emergency descent system | ||
| 4.3' LED display | Oscillating axle | ||
| Swing-out engine tray | Load sensing system | ||
| Accessories ＆ Options | |||
| Platform work lights | |||
| Anti-collision device | |||
| AC power to platform | |||
