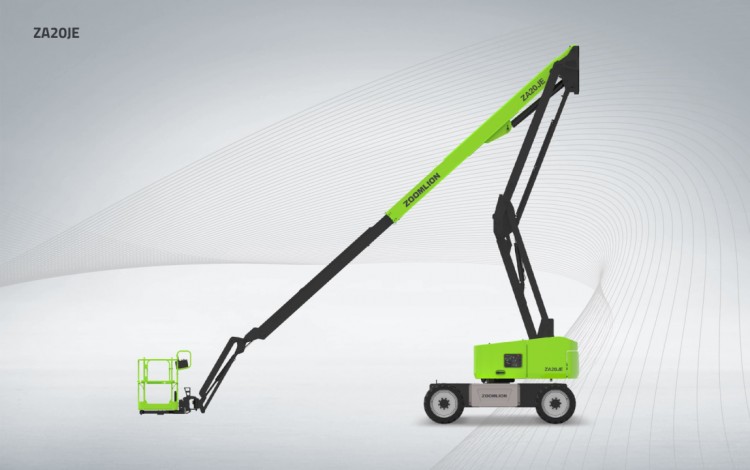

ZA20JE
İndir| Electric Articulating Boom Lifts | ||
| Comply with CE/ANSI/GB Standard | ||
| Model | ZA20JE | |
| Size | ||
| Work Height | 21.45m | |
| Platform Height | 19.45m | |
| Horizontal Outreach | 12.05m | |
| Up and Over Height | 8.25m | |
| A - Stowed Length | 8.72m | |
| B - Stowed Width | 2.49m | |
| C - Stowed Height | 2.56m | |
| D - Platform Length | 1.83m | |
| E - Platform Width | 0.76m | |
| F - Wheelbase | 2.52m | |
| G - Ground Clearance | 330mm | |
| Performance | ||
| Platform Capacity | 250kg | |
| Drive Speed | 6.1km/h | |
| Gradeability | 45% | |
| Axles Oscillation | 200mm | |
| Turning Radius (Inside) | 2.78m | |
| Turning Radius (Outside) | 5.49m | |
| Swing | 360° continuous | |
| Platform Rotation | ±90° | |
| H-Tail Swing | 0.6m | |
| Max. Working Slope | 3/5° | |
| Max. Wind Speed | 12.5m/s | |
| Power | ||
| Battery | 24×2V/440Ah | |
| Charger | 48V/60A | |
| Drive Motor | AC 32V | |
| Lift Motor | AC 32V | |
| Auxiliary Power | 12V DC | |
| Hydraulic Tank Capacity | 75L | |
| Tire | ||
| Type | 33x12 D610 Foam-filled Tires | |
| Weight | ||
| Gross | 9200kg | |
| Highlights | ||
| Provide a work height of 21.50 m and lift capacity of 250 kg | ||
| Fast lift system directly lowers the boom from the highest position to the ground without folding the boom | ||
| Accurate and efficient traveling AC drive system and on-board motion AC drive system provide strong power, stable control and maintenance-free motor. | ||
| Independent auxiliary power system for more secure applications | ||
| Features | ||
| Standard Features | Accessories ＆ Options | |
| Proportional control | AC power to platform | |
| All motion alarm | Air line to platform | |
| Flashing amber beacon | 2.44×0.91m work platform | |
| Self-closing entry gate | Non-marking tire | |
| Emergency descent system | Platform work lights | |
| Emergency stop button | ||
| Auto-leveling system | ||
| On-board diagnostic system | ||
| Over tilt protection system | ||
| Oscillating axle | ||
| Load sensing system | ||
| 4.3' LED display | ||
| Horn | ||
